HiPath 3000 - Operating instructions - optiPoint 600 office

	Home

	optiPoint 600 office

Using a Caller List

If you are unable to accept an external or internal call, the call attempt is stored in the caller list.
You can store answered calls either manually (both internal and external calls) or automatically (external calls only), Contact your service personnelfor details.
Your telephone stores up to ten calls in chronological order. Each call is assigned a time stamp. The most recent entry not yet answered in the list is displayed first. Multiple calls from the same caller do not automatically generate new entries in the caller list. Instead, only the most recent time stamp for this caller is updated and its number incremented.

Retrieving the Caller List

Precondition: The service personnel in charge set up a caller list for your telephone.

Step by Step

Select the Phone tab.

Select and confirm.

or

Enter the code.

Show navigation softkeys.

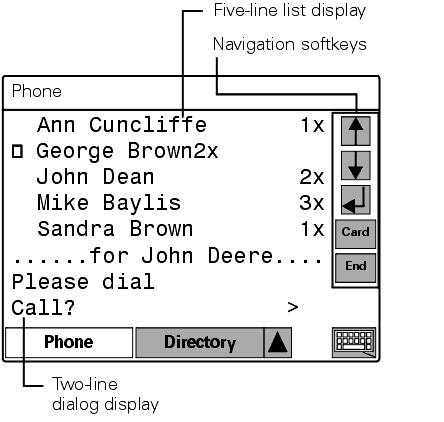

The caller list is displayed with navigation softkeys:

or

Click on softkeys or press keys to select the relevant parties (square at the start of the line).

Ending a retrieve operation

Select and confirm.

or

or

Click on the softkey or press the key.

or

Press the key. The LED goes out.

or

Press the key. The LED lights up.

Checking the Call Time/Additional Call Information

Precondition: You have retrieved the caller list, the call you want is displayed.

Select and confirm.

or

or

Click on the softkey or press the key.

Dialing a Station Number from the Caller List

Precondition: You have retrieved the caller list, the call you want is displayed.

Select and confirm.

or

or

Click on the softkey or press the key.

The display switches to "Phone" .


	The caller is automatically deleted from the caller list when a connection is finally set up.

Removing an Entry from the Caller List

Precondition: You have retrieved the caller list, the call you want is displayed.

Confirm.

or

Press the key.

Saving the Other Party's Station Number
in the Caller List (Redial)

Precondition: You are engaged in a call or have called an external party.

Press the "OK" dialog key to confirm your selection

or

Press the key. The LED lights up. Enter the code.
