Busy Lamp Field

	Special features must be taken into consideration if your Attendant P operates with HiPath AllServe (system networking via PC network) !

Representation

The busy lamp field has a total of 240 status keys that that you can divide into two or four groups, assigning an internal station to each key. The status keys display either the number (in station number mode) or the name (in name mode) of the internal stations assigned to them, enabling you to display a total of 240 internal parties as follows:

In station number mode: two groups of 120 stations each.

In name mode: four groups of 60 stations each.

To select a station, click the status key assigned to this station.

To change these status button colors, select Settings from the File menu, and then the BLF tab. From there, you can also select whether the background color or only the color of the status button label should be changed.

Example: If a status button has a gray background, the station if free. If the background is dark red, the station is busy with an external call; if it is light red, the station is busy with an internal call. If the station is being called, the background of the status button turns yellow.

If you position the mouse on a status key while the BLF displays the internal party's station number, a window automatically pops up containing the station name of this party.

If the BLF displays the name, the station number appears in the pop-up window of the selected status key.

Calling the Busy Lamp Field

The busy lamp field opens automatically when you start Attendant P. If it doesn't appear for some reason, follow the steps below to open it:

Step by Step
	Click the busy lamp field button in the toolbar.
or
	Select the BLF option from the Window menu. The busy lamp field appears: When you click one of the labeled status buttons, the number for this station is automatically dialed .   Double-clicking a status button has the same effect as single-clicking it.

Activating and Deactivating the Busy Lamp Field

You can configure the busy lamp field to open automatically when Attendant P starts up.

Step by Step

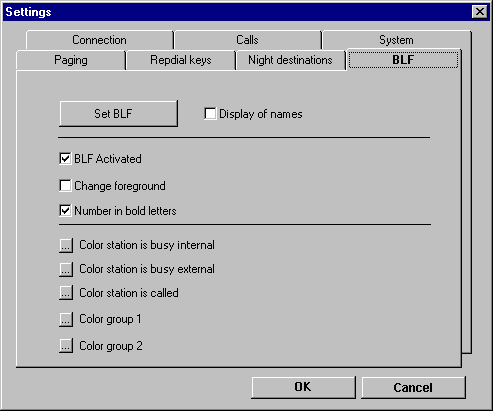

	From the File menu, select the Settings option to display the Settings window.
	Select the BLF tab.
	Select the BLF Activated box if you want the BFL to open automatically when Attendant P starts up. Leave the BLF Activated box blank if you do not want the BFL to open automatically when Attendant P starts up.
	Click the OK button to confirm your selection.
	Click the Cancel button to return to the attendant monitor.

	To close the BLF, you must first deactivate the BLF Activated option on the BLF tab and then restart Attendant P.

Labeling the Busy Lamp Field

To assign status buttons to internal stations, you must label the buttons with the station numbers. To do this, first set the busy lamp field to station number mode .

Step by Step
	Call the busy lamp field.
	To open the Station number dialog box, using the left mouse button, simultaneously click the status button to be labeled while pressing the Shift key.
	Enter the station number and click OK to confirm your entry. The station is now saved under this status button. Instead of the station number, you can also display the name assigned to the number in the system .

Deleting a Station

Step by Step
	Call the busy lamp field.
	Press Ctrl while clicking the left mouse button on the status button of the station to be deleted. The station is deleted from the busy lamp field.

	Deleting a station from the busy lamp field does not delete it from your system; in other words, you can reconfigure it at any time.
